Custom Printed Stand Up Pouches with a Clear or Frosted Window

How is the window made in a stand up pouch?

The window is not a hole with a film stuck over it. The pouch body is a clear laminate, and the printed artwork, including any white base, is left out in the window shape. Where there is no ink, you see through.

That is why a window pouch is usually built on PET / PE or BOPP / PE. On a foil laminate a window needs a different construction, which we can quote on request.

A frosted window is made by printing a translucent white over the clear area instead of leaving it bare, which is why it is quoted the same as a clear one.

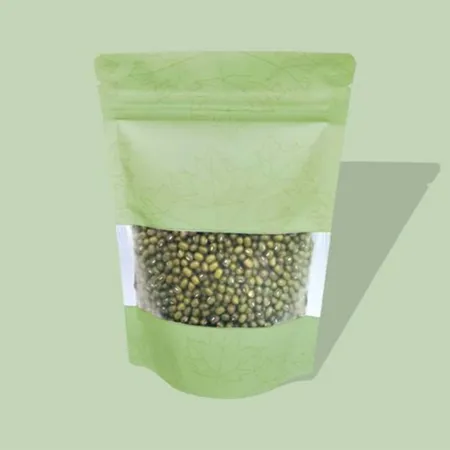

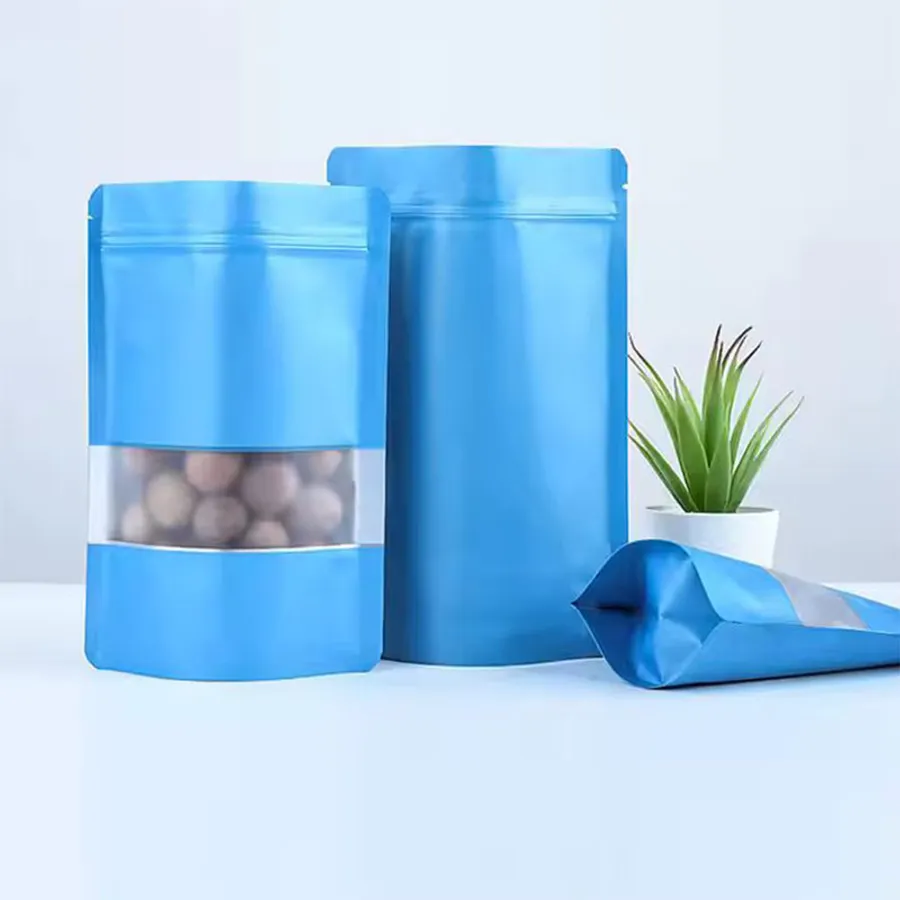

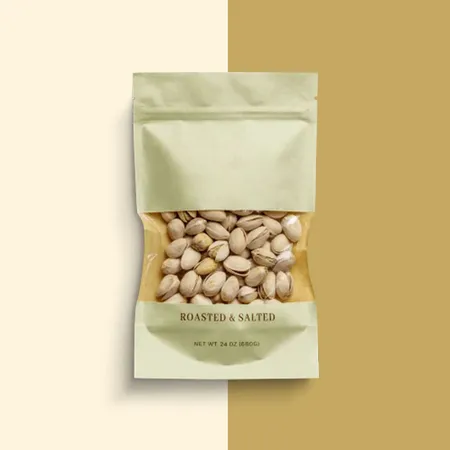

Our photos show a frosted rectangle on a matte blue pouch holding nuts, a lower band window on a pale green pistachio pouch, and a centred window on a mung bean pouch.

Which products look good through a window?

A window sells products with visible texture, colour or shape. It works against you for fine powders, which coat the inside of the film and look dusty.

Pet treat makers use the window differently: it shows the size of the treat, which matters more to a dog owner than the colour.

For sweets and gifting, the printed sweet bags with window options page shows shapes that suit smaller packs.

• Pistachios, almonds, cashews and coated nuts
• Boiled sweets, fudge and chocolate buttons
• Lentils, chickpeas, mung beans and rice
• Pink bath salts and dried flower petals
• Granola clusters and freeze-dried fruit pieces
• Dog treats and dried fish for pets

Where should the window sit?

Product settles to the bottom of a stand up pouch and the top third is often empty air after shipping. A window in that top third shows nothing.

Measure your fill line on a sample pouch before you choose. Leave 15 mm between the window edge and the side seals. On a 250 g nut pouch that means a window roughly 40 to 60 mm high, starting about 25 mm above the gusset fold.

Clear or frosted: which window?

A clear window shows true colour and detail. It also shows every scratch and any film of oil left by roasted nuts.

A frosted window softens the view, hides fingerprints and gives a satin look that pairs well with matte print. Dark coloured products read better through clear film; light products such as oats or salts look fine behind frost.

Retailers with bright shop lighting tend to prefer frosted, since clear film reflects spotlights and hides the product behind glare.

Both are options at the same price point on the quote. If you are unsure, our guide to choosing a food pouch walks through the decision.

What about barrier and shelf life?

Light reaches the product through the window, and clear film has a lower oxygen barrier than foil. For nuts and seeds with oils that go rancid, keep the window modest and choose a high-barrier clear film.

High-barrier, food-contact and compostable films are options on request. We confirm the build on the quote once we know your shelf life target.

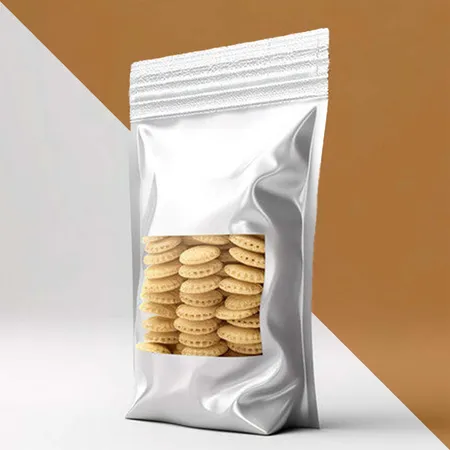

Sweets, pulses and bath salts are forgiving. Roasted coffee is not, and a window is rarely the right call for it. Foil-based bags with a window are on the mylar bags with window page.

Print and finishes around the window

The printed area surrounds the window, so artwork needs a clean edge against the clear zone. A white under-print behind the colours stops the product showing through the design.

Matte finishes hide the window edge well. Spot gloss over matte can highlight a logo above the window.

Dark backgrounds suit frosted windows and pale backgrounds suit clear ones. A navy pouch with a frosted band looks deliberate; the same navy with a sharp clear rectangle can look like a gap in the print.

Our designers place the window on the dieline for free and send a proof that shows the clear area as a grey shape, so you can judge the balance before print.

Deciding window size: a short method

Five minutes with a sample pouch and a roll of tape settles most window questions.

You can also try layouts in Design Your Pouch on this site and send us the picture.

1. Fill a sample pouch to your real weight and let it settle overnight.
2. Mark the fill line on the front with tape.
3. Draw the window at least 10 mm below that line at its top edge.
4. Keep 15 mm clear of each side seal and 20 mm above the gusset fold.
5. Check that the legal panel still fits on the back.
6. Send a photo of the marked-up pouch with your quote request.

Filling and sealing with a window pouch

Windows do not change the sealing routine. Fill through the open top, keep the seal strip clean and seal above the zipper.

Clear film does mark more easily than printed film, so handle pouches by the edges and keep them away from grit on the filling table. Store them flat and out of direct sunlight.

If the window sits low, product pressing against it while you seal can leave a mark on the film. Fill, let the product settle, then seal with the pouch upright rather than flat on its face.

Common mistakes with window pouches

Printing a dark background right up to a clear window without a white under-print gives a grey halo at the edge. Placing the window over the zipper line is another frequent one.

A shaped window with sharp inner corners also cracks the print edge over time. Round the corners by 3 mm or more.

Brands also forget that a window shows the inside of the front panel. Any product dust that sticks there is visible, so fill gently with powdery coatings.

Finally, do not order a window for a product that is sold in an opaque pouch for a reason. Light-sensitive oils, herbs and spices lose colour behind glass-clear film.

How to order stand up pouches with window

Send your product, fill weight, window shape idea and artwork by email, WhatsApp or the quote form. Quantities are quoted per order, from £0.25 per unit, confirmed in writing before production.

Approve the free proof and the run takes 4–6 business days, then free tracked delivery lands at your UK address in 2–3 business days.

Any misprint or damage reported within 10 days with photos is reprinted or refunded, as set out on our reprints and refunds page.
